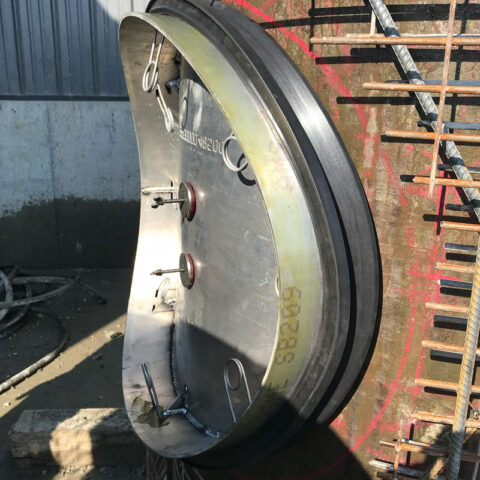

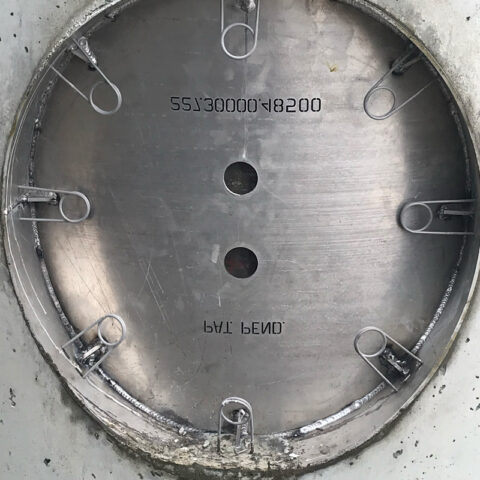

  • Econoseal on mandrel
  • Econoseal closeup

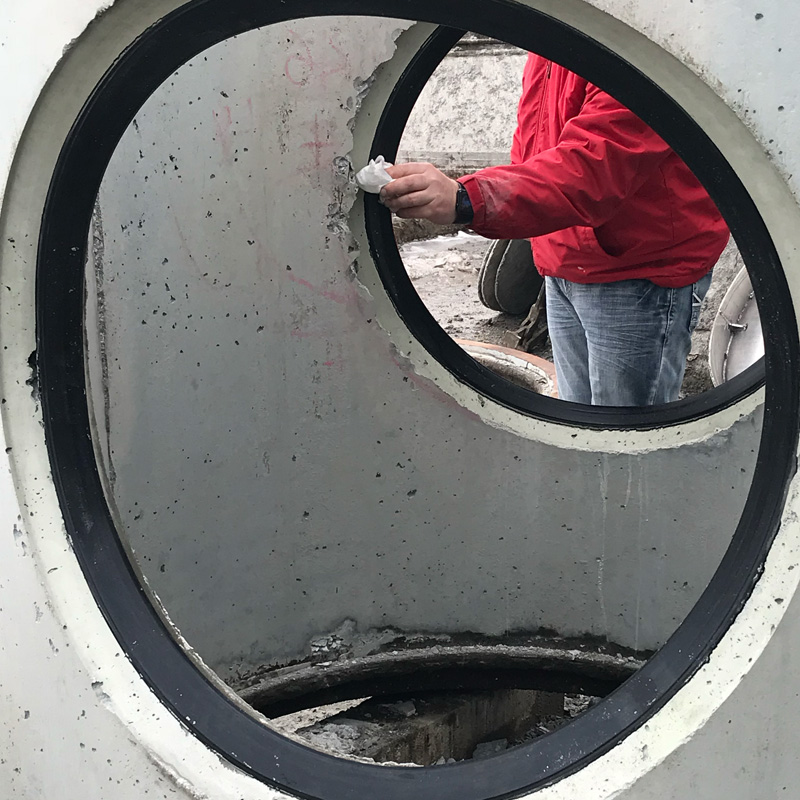

  • Econoseal in manhole

Econoseal

The Econoseal is a simple cast-in pipe- to-manhole connector that offers an easy installation process in precast production facilities and in the field for contractors. The key-lock is integrally cast-in during the production process providing a secure seal for storm water and sanitary collection systems.

Category:

Document Downloads


Download Product Literature

How It Works

  • Reusable mandrel tool holds the connector in place during the casting process.
  • Connector is folded inward towards center of structure before shipping to job site.
  • The pipe is beveled at the job site.
  • Lubricant is applied to the connector and the pipe barrel.
  • Pipe is inserted into connector by contractor.

Why It's Better

  • No special torque tools or take-up clamps required.
  • Durable and reusable mandrel forms.
  • Integrally cast into the structure at time of casting.
  • Contractor can save time and money by backfilling immediately.

Where To Use

  • Manholes
  • Wet wells
  • Stormwater structures

Meets or Exceeds

  • ASTM C 923: Standard Specification for Resilient Connectors Between Reinforced Concrete Manhole Structures, Pipes, and Laterals
  • ASTM C 1478: Standard Specification for Storm Drain Resilient Connectors Between Reinforced Concrete Storm Sewer Structures, Pipes and Laterals
  • ASTM C 1244: Standard Test Method for Concrete Sewer Manholes by the Negative Air Pressure (Vacuum) Test
TYPICAL TEST RESULTS for ECONOSEAL (as in ASTM C 923 and C 1478)
TestASTM Test MethodTest RequirementsTypical Result
CHEMICAL RESISTANCE;
1N SULFURIC
ACID and 1N
HYDROCHLORIC ACID
D 534, AT 22ºC FOR
48 HRS
NO WEIGHT LOSS
NO WEIGHT LOSS
NO WEIGHT
LOSS
NO WEIGHT
LOSS
TENSILE STRENGTHD 412 1200 PSI, MIN2100 PSI
ELONGATION AT
BREAK
D 412350%, MIN600%
HARDNESSD 2240 (SHORE A
DUROMETER)
±5 FROM THE
MANUFACTURER’S
SPECIFIED HARDNESS
<2
ACCELERATED
OVEN-AGING
D 573, 70± 1ºC
FOR 7 DAYS
DECREASE OF 15%,
MAX. OF ORIGINAL
TENSILE STRENGTH, DECREASE
OF 20%, MAX.
OF ELONGATION
-13% TENSILE
CHANGE, -14%
ELONGATION
CHANGE
COMPRESSION TESTD 395, METHOD B,
AT 70ºC FOR 22 HRS
DECREASE OF 25%,
MAX. OF ORIGINAL DEFLECTION
13%
WATER ABSORPTIOND 471 IMMERSE 0.75
BY 2-IN.SPECIMEN
IN DISTILLED WATER
AT 70ºC FOR 48 hrs
INCREASE OF 10%,
MAX. OR ORIGINAL BY
WEIGHT
3.50%
OZONE RESISTANCED 1171RATING 0PASS
LOW-TEMP,
BRITTLE POINT
D 746NO FRACTURE AT -40ºCPASS
TEAR RESISTANCED 624, METHOD B200 LBF/IN. (MIN.)450 LBF/IN.

A watertight flexible pipe-to-manhole connector shall be employed in the connection of the sanitary sewer and/or stormwater pipe to precast manholes or other structures.

The connector shall be ECONOSEAL as manufactured by Press-Seal Corporation, Fort Wayne, Indiana, or approved equal.

The connector shall be the sole element relied on to assure a flexible watertight seal of the pipe to the structure. The rubber connector shall be constructed solely of synthetic or natural rubber, shall meet/exceed the requirements of ASTM C 923, and shall have a minimum tensile strength of 1600 psi.

The connector shall be directly cast into the structure using casting accessories available from the connector manufacturer. Selection of the proper casting accessories for the manhole and pipe requirement, and installation thereof, shall be in strict conformance with the recommendations of the connector manufacturer. Any dead end pipe stubs installed in connectors shall be restrained from movement per ASTM C 923.

The finished connection shall provide sealing to 13 psi (minimum), and shall accommodate deflection of pipe to 7 degrees (minimum) without loss of seal.

Vacuum testing shall be conducted in strict conformance with ASTM C 1244 prior to backfill. Other testing shall be conducted in strict conformance with the requirements of the connector manufacturer.

Econoseal for 4″ – 15″ Pipe Sizes

  1. Remove Casting Mandrel and Casting Ring from the installed ECONOSEAL Connector.
  2. Fold sealing member from Casting Position (toward outside of manhole) to Seal Position (toward inside of manhole).
  3. Manhole is ready to ship to job site for pipe installation.
  4. Bevel pipe 3/4” (20 mm) all around.
  5. Clean connector, pipe barrel, and manhole opening of any dirt or debris.
  6. Apply gasket lubricant to pipe barrel (at least 15”) (375 mm) and to connector.
  7. Center beveled pipe in connector and push pipe into manhole. Use a bar for leverage, if required, taking
    care not to damage pipe or connector.
  8. Set pipe to line and grade and back fill carefully.

Econoseal for 18in – 30in Pipe Sizes

  1. Remove torsion springs and casting mandrel from the installed Econoseal connector.
  2. Fold sealing member from casting position (toward outside of manhole) to seal position (toward inside of manhole).
  3. Manhole is ready to ship to job-site for pipe installation.
  4. Bevel pipe 3/4” (20 mm) all around.
  5. Clean connector, pipe barrel, and manhole opening of any dirt or debris.
  6. Apply gasket lubricant to pipe barrel (at least 15”) (375 mm) and to connector.
  7. Center beveled pipe in connector and push pipe into manhole. Use a bar for leverage, if required, taking care not to damage pipe or connector.
  8. Set pipe to line and grade and back fill carefully.



PVC, HDPE, NYLOPLAST PVC & HARCO PVC SELECTION GUIDE

**These part numbers indicate a molded Econoseal with durable urethane mandrel

PIPE DESCRIPTIONPIPE O.D.CONNECTOR NUMBERMANDREL NUMBERCASTING RINGSTRUCTURE OPTIONS
4” (100 mm) PVC
ASTM C 3034
4.210"
107 mm
770.0421
770.0421.M
227.420471
227.0471
227.0471.M**
258.47142” MH - 4.5” WALL
48” MH - 5” WALL
6” (150 mm) PVC SDR35
ASTM D 3034
6.275
159 mm
770.0627227.0677.30
227.420677
227.0677
227.0677.M**
258.67730” MH - 4.5” WALL
42” MH - 4.5” WALL
48” MH - 5” WALL
8” (200 mm) PVC SDR35
ASTM D 3034
8.400
213 mm
770.0840227.420915
227.0915
258.91530” MH - 4.5” WALL
42” MH - 4.5” WALL
48” MH - 5” WALL
60” MH - 6” WALL
10” (250 mm) PVC SDR35
ASTM D 3034
10.500
267 mm
770.1050227.421125
227.1125
258.112542” MH - 4.5” WALL
48” MH - 5” WALL
12” (300 mm) PVC SDR35
ASTM D 3034
12.500
318 mm
770.1250227.421325
227.1325
258.132542” MH - 4.5” WALL
48” MH - 5” WALL
15” (375 mm ) PVC SDR35
ASTM D 3034
15.300
389 mm
770.1530227.421605
227.1605
258.160542” MH - 4.5” WALL
48” MH - 5” WALL
18" PVC SDR3518.701
475 mm
770.18701.42450
770.18701.48500
770.18701.60600
770.18701.72700
227.18701.42450
227.18701.48500
227.18701.60600
227.18701.72700
N/A42” MH - 4.5” WALL
48” MH - 5” WALL
60” MH - 6” WALL
70” MH - 7” WALL
21” PVC SDR3522.047
560 mm
770.22047.42450
770.22047.48500
770.22047.60600
770.22047.72700
227.22047.42450
227.22047.48500
227.22047.60600
227.22047.72700
N/A42” MH - 4.5” WALL
48” MH - 5” WALL
60” MH - 6” WALL
70” MH - 7” WALL
24” PVC SDR3524.803
630 mm
770.24803.42450
770.24803.48500
770.24803.60600
770.24803.72700
227.24803.42450
227.24803.48500
227.24803.60600
227.24803.72700
N/A42” MH - 4.5” WALL
48” MH - 5” WALL
60” MH - 6” WALL
72” MH - 7” WALL
27” PVC SDR3527.953
710 mm
770.27953.48500227.27953.48500N/A48” MH - 5” WALL
30” PVC SDR3532.000
813 mm
770.32000.48500227.32000.48500N/A48” MH - 5” WALL

RCP SELECTION GUIDE

PIPE DESCRIPTIONPIPE O.D.CONNECTOR NUMBERMANDREL NUMBERCASTING RINGSTRUCTURE SIZE OPTIONS
18” (450 mm) RCP
WALL B
23.00”
584 mm
770.23000.48500227.23000.48500N/A48” MH - 5” WALL

CI/DI SELECTION GUIDE

PIPE DESCRIPTIONPIPE O.D.CONNECTOR NUMBERMANDREL NUMBERCASTING RINGSTRUCTURE SIZE OPTIONS
4” (100 mm) DI4.800”
122 mm
770.0480227.0530
258.053048” MH - 5” WALL
6” (150 mm) DI6.900”
175 mm
770.0690227.420765
227.0765
258.076542” MH - 4.5” WALL
48” MH - 5” WALL
8” (200 mm) DI9.050”
230 mm
770.0905227.420980
227.0980
258.098042” MH - 4.5” WALL
48” MH - 5” WALL
10” (250 mm) DI11.100”
282 mm
770.1110227.421185
227.01185
258.0118542” MH - 4.5” WALL
48” MH - 5” WALL
12” (300 mm) DI13.200”
335 mm
770.1320227.421395
227.1395
258.0139542” MH - 4.5” WALL
48” MH - 5” WALL
14” (350 mm) DI15.300”
389 mm
770.1530227.421605
227.1605
258.0160542” MH - 4.5” WALL
48” MH - 5” WALL
18” (457 mm) DI19.50”
495 mm
19500.4850019500.48500N/A48” MH - 5” WALL
30” (762 mm) DI32.000”
813 mm
32000.4850032000.48500N/A48” MH - 5” WALL

NOTE:

  • A reusable Casting Mandrel and Casting Ring are required for each connector to be cast.
  • Above Casting Mandrels and Casting Rings are for 48” ID X 5” wall (1200 x 125 mm) Manholes only. For other casting form requirements, contact our Customer Service Department.
  • The Econoseal requires Press-Seal supplied mandrel system for integrally casting into the structure. Please contact your territory manager or customer service department for details.

CI/DI Cast Iron and Ductile pipes produced to AWWA C 151 specification standards
PVC D 3034 PVC pipes produced to ASTM D 3034 specification standards up through 15’’ ID (375 mm) size
TRUSS Pipes produced to ASTM D 2680 specification standards

OTHER PIPE SIZES and TYPES
The listing contains the sizes and types of pipe that can be used with ECONOSEAL Connectors. Other pipe sizes and types can be connected with PSX: Direct Drive and/or PSX:Positive Seal. For information on pipes not listed, please contact our Customer Service Department.
