Metallic Rail Inserts

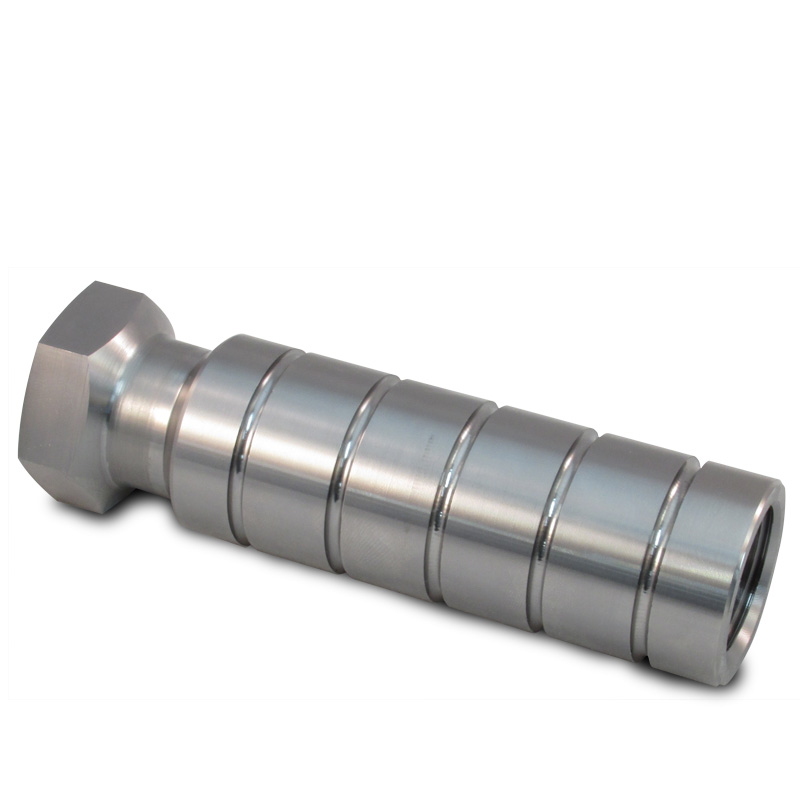

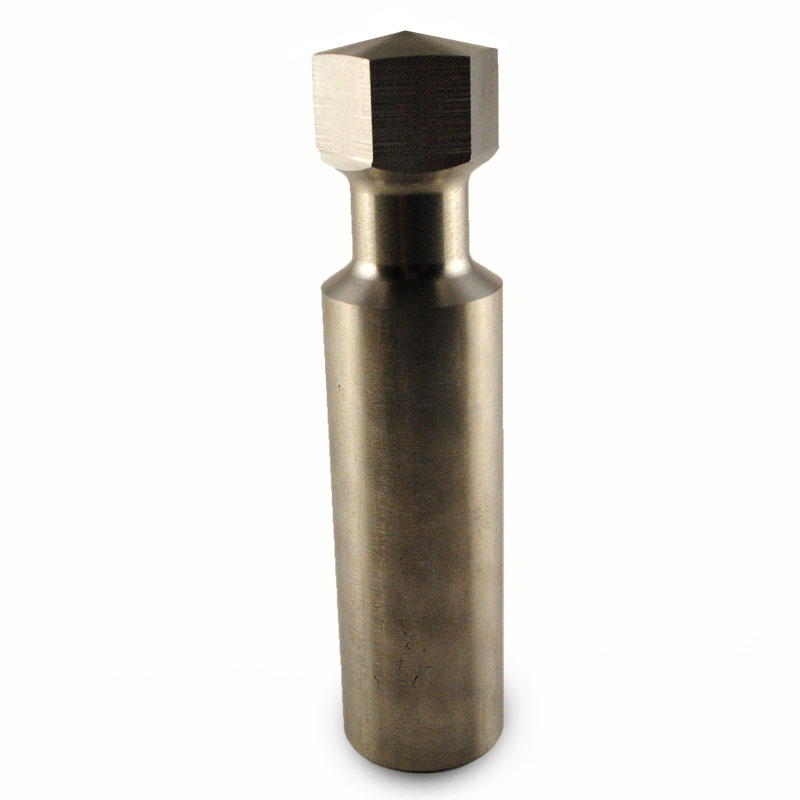

INSULGUARD metallic inserts are a very robust anchoring method that can be used in precast concrete ties and cast in place slabs. Steel inserts are manufactured from solid bar which meets very high tensile requirements for direct fixation applications. Ductile iron inserts are a strong yet economical method to anchor direct fixation plates and stainless steel inserts are a corrosion proof method to anchor third rail posts and brackets.
Our steel, ductile iron and stainless steel inserts have been engineered and tested to meet the demanding environments and applications seen in transit systems and Class I freight.
Features and Benifits
- High strength steel inserts in numerous configurations and designs

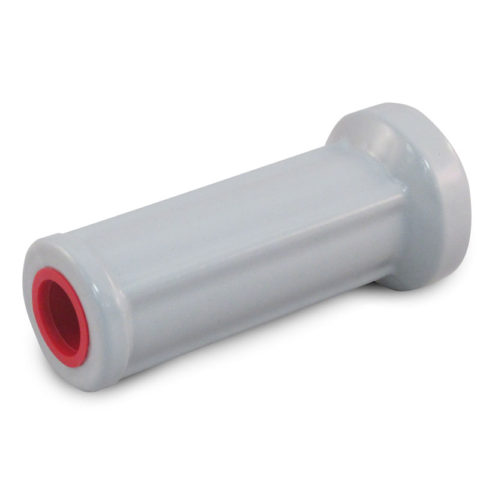

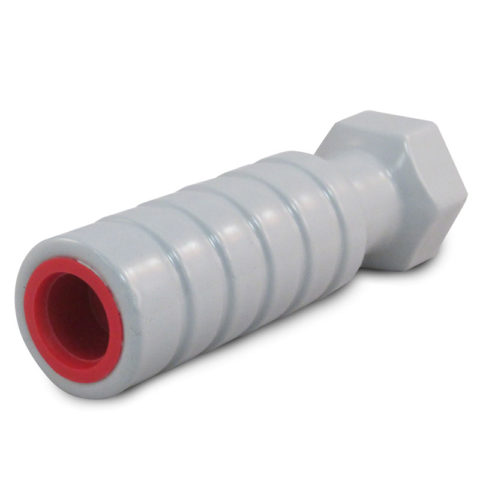

- Steel and ductile iron inserts can be epoxy coated for stray current control and corrosion resistance
- Superior pull out and high torque capabilities
- Stainless steel inserts are corrosion resistant
- Numerous thread sizes available
- Numerous lengths available
Applications include:
- Direct Fixation
- Third Rail posts
- Restraining and guard rail
- Switches and turnouts
- PTC system brackets
